Kennametal

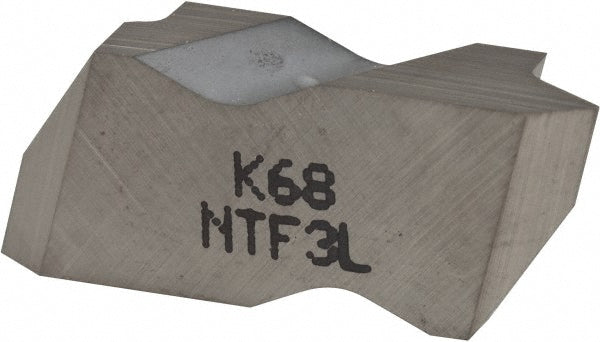

Carbide Insert, Grade K68 - Kennametal 1113500
MFR# 1113500Series Top Notch
$35.04List $42.03
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK68
MaterialCarbide
Description
The Kennametal 1113500 is a carbide indexable insert, grade K68.
Specifications
Corner radius0.0031
External pitch0.60-2.50 mm; 10-44 TPI
Finish coatingBright/Uncoated
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNTF
Internal pitch1.00 to 2.50 mm; 9 to 24 TPI
Manufacturer gradeK68
Material gradeC3
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1409
