Kennametal

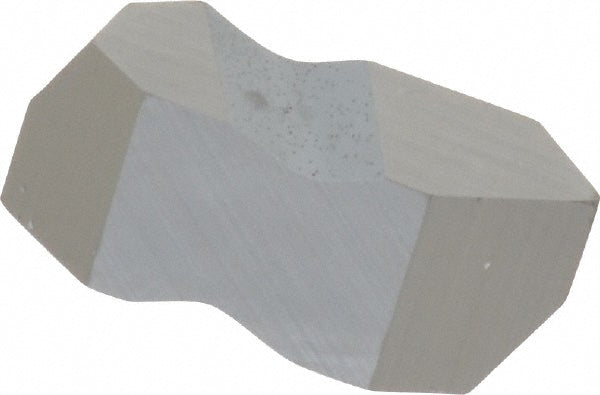

Carbide Insert, Grade K68 - Kennametal 1113508
MFR# 1113508Series Top Notch
$28.53List $34.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK68
MaterialCarbide
Description
The Kennametal 1113508 is a carbide indexable insert, grade K68.
Specifications
Corner radius0.0067
External pitch1.25-4.00 mm; 6-20 TPI
Finish coatingBright/Uncoated
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNT
Internal pitch2.00 to 5.00 mm; 5 to 12 TPI
Manufacturer gradeK68
Material gradeC3
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0980
