Kennametal

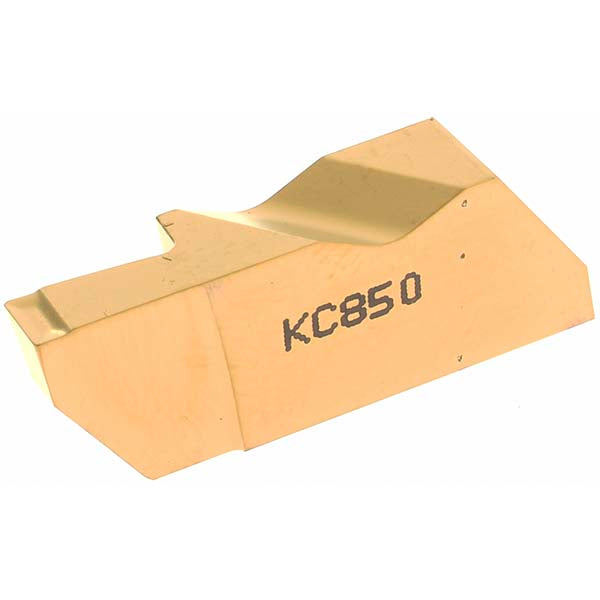

Carbide Insert, Grade KC850, TiC - Kennametal 1113763
MFR# 1113763Series Top Notch
$34.27List $41.11
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1113763 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0075
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.3440
Insert materialCarbide
Insert size3125
Insert styleNFD
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNFD3125R/LK
Multi use toolNo
RakePositive
Rake angle10
