Kennametal
Carbide Insert, Grade KC850 - Kennametal 1113814
MFR# 1113814Series Top Notch
$50.05List $60.03
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
Description

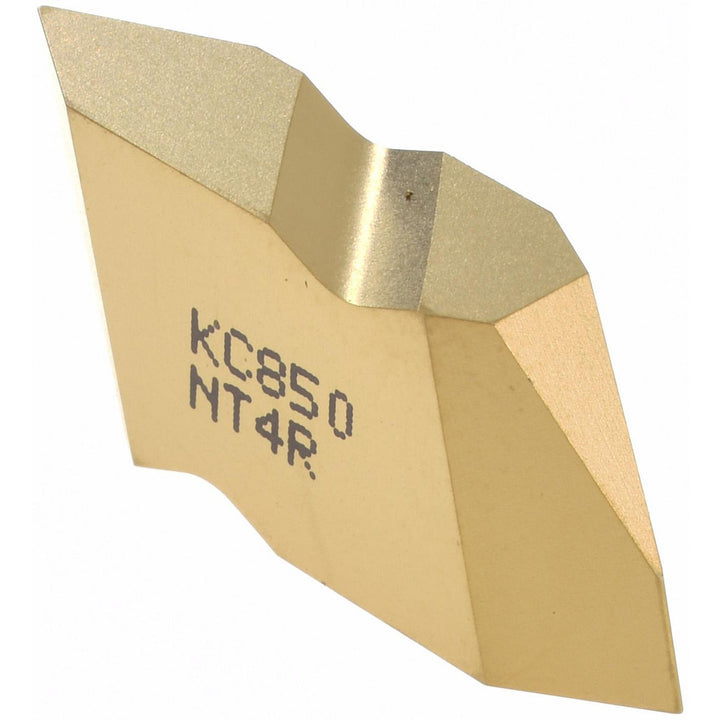

The Kennametal 1113814 is a carbide indexable insert, grade KC850.
Specifications
Coating processCVD
Corner radius0.0067
External pitch1.25-6.25 mm; 4-20 TPI
Finish coatingTiC/TiCN/TiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size4
Insert styleNT
Internal pitch2.00 to 6.25 mm; 4 to 12 TPI
Manufacturer gradeKC850
Material gradeC5; C6
Thickness0.2551
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1280
