Kennametal
Carbide Insert, Grade KC720, TiN - Kennametal 1114160
MFR# 1114160Series Top Notch
$34.53List $42.15
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC720
MaterialCarbide
CoatingTiN
Description

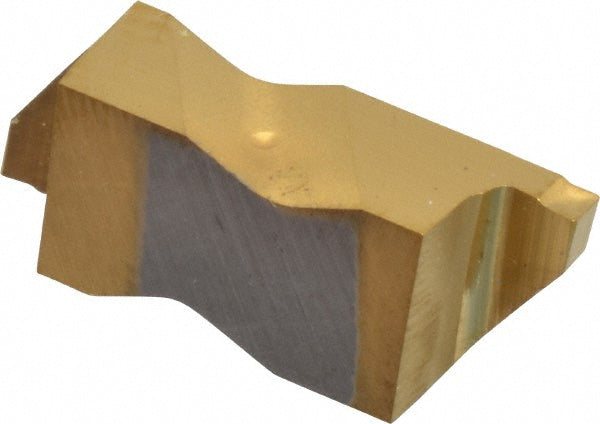

The Kennametal 1114160 is a carbide indexable insert, grade KC720, TiN coated.
Specifications
Chip breakerK
Coating finishTiN
Coating processPVD
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert materialCarbide
Insert size3062
Insert styleNG
Lead angle3
Manufacturer gradeKC720
Material gradeC1; C5
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
