Kennametal

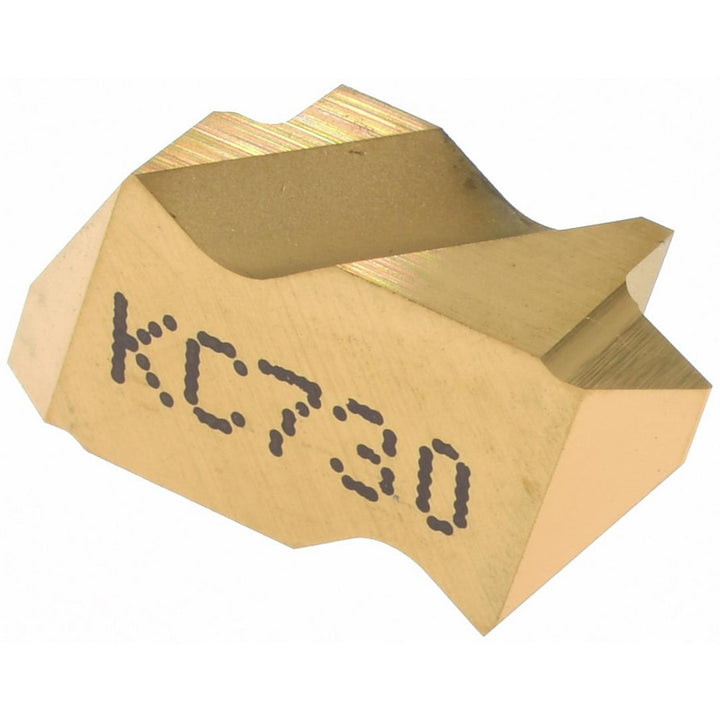

Carbide Insert, Grade KC730, TiN - Kennametal 1114258
MFR# 1114258Series Top Notch
$30.72List $37.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1114258 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0031
External pitch0.60-1.75 mm; 14-44 TPI
Finish coatingTitanium Nitride
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size2
Insert styleNTK
Internal pitch1.00 to 2.00 mm; 12 to 24 TPI
Manufacturer gradeKC730
Material gradeC2; C3; C4
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1098
