Kennametal

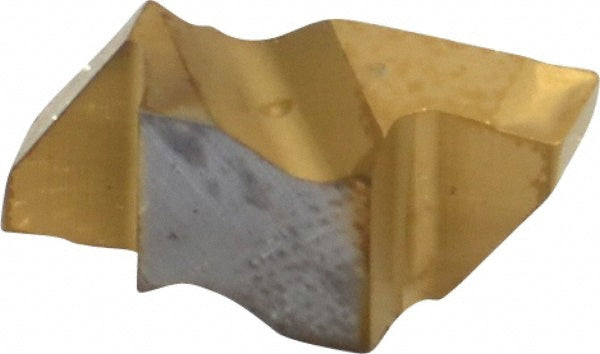

Carbide Insert, Grade KC730, TiN - Kennametal 1114292
MFR# 1114292Series Top Notch
$34.00List $41.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1114292 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Chip breakerK
Coating finishTiN
Coating processPVD
Corner radius0.0075
Cutting width0.0941
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.2190
Insert materialCarbide
Insert size2094
Insert styleNG
Lead angle3
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Msc manufacturer numberNG2094R/LK
Multi use toolNo
RakePositive
Rake angle10
