Kennametal
Carbide Insert, Grade KC730, TiN - Kennametal 1114347
MFR# 1114347Series Top Notch
$36.60List $44.67
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description

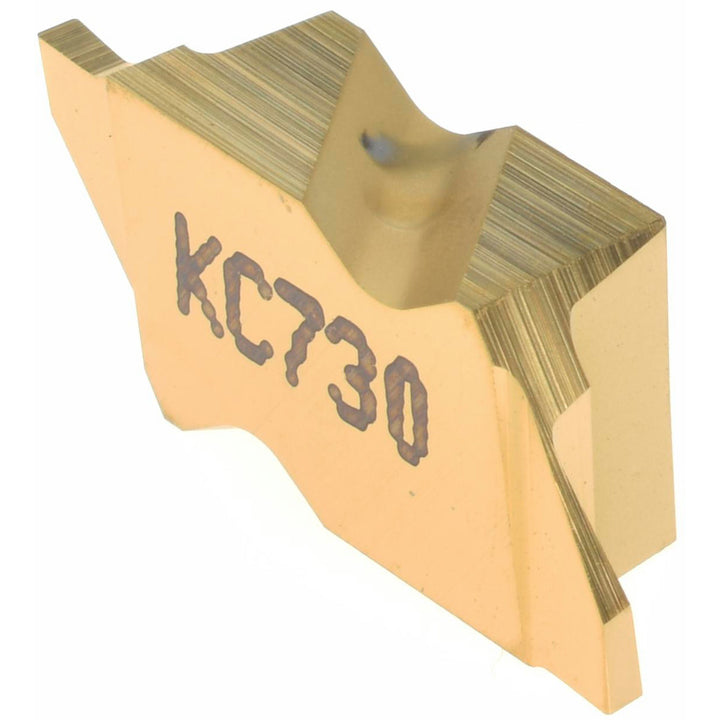

The Kennametal 1114347 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0035
Cutting width0.0311
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.2190
Insert materialCarbide
Insert size2031
Insert styleNGP
Lead angle3
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Msc manufacturer numberNGP2031R
Multi use toolNo
RakePositive
Rake angle5
