Kennametal
Carbide Insert, Grade KC730, TiN - Kennametal 1114356
MFR# 1114356Series Top Notch
$37.84List $46.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description

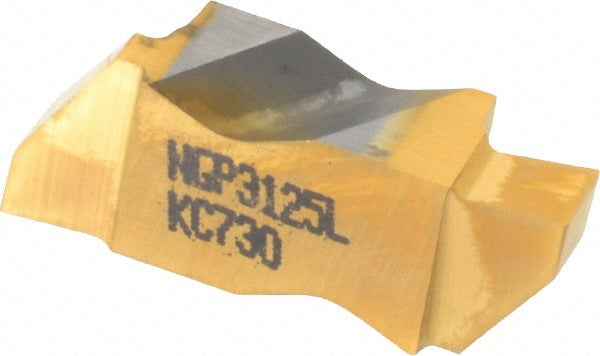

The Kennametal 1114356 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0075
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3125
Insert styleNGP
Lead angle3
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle5
