Kennametal
Carbide Insert, Grade KC730, TiN - Kennametal 1114367
MFR# 1114367Series Top Notch
$33.45List $40.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description

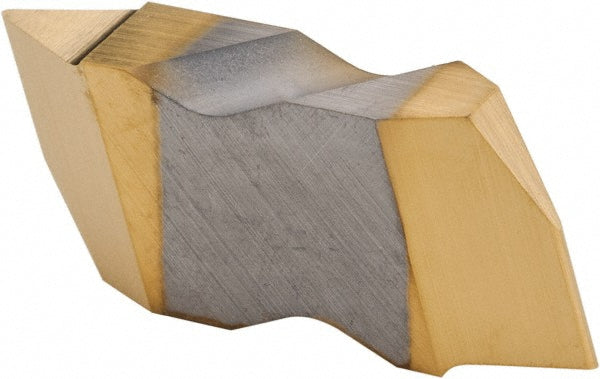

The Kennametal 1114367 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0130
External pitch12 TPI
Finish coatingTitanium Nitride
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3014
Insert styleNJP
Manufacturer gradeKC730
Material gradeC2; C3; C4
Thickness0.1949
Thread standardUNJ
Thread typeExternal
Tip to top of insert0.0980
