Kennametal
Carbide Insert, Grade K68 - Kennametal 1114625
MFR# 1114625Series Top Notch
$30.71List $37.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK68
MaterialCarbide
Description

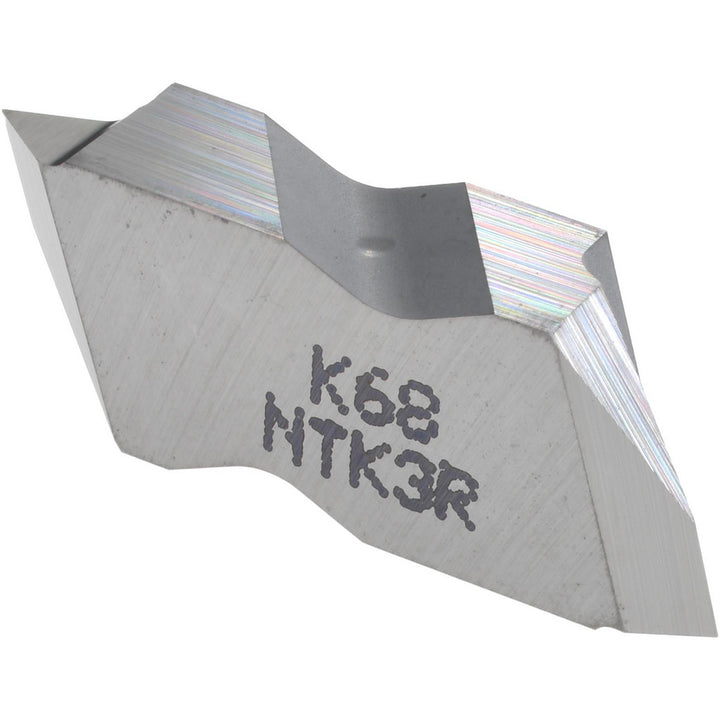

The Kennametal 1114625 is a carbide indexable insert, grade K68.
Specifications
Corner radius0.0031
External pitch0.60-2.50 mm; 10-44 TPI
Finish coatingBright/Uncoated
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNTK
Internal pitch1.00 to 2.50 mm; 9 to 24 TPI
Manufacturer gradeK68
Material gradeC3
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1409
