Kennametal

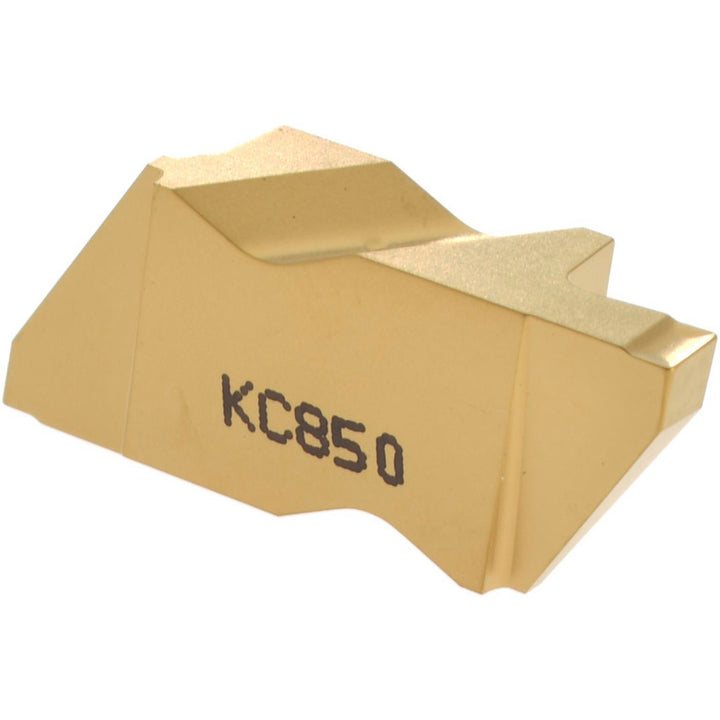

Carbide Insert, Grade KC850, TiC - Kennametal 1114920
MFR# 1114920Series Top Notch
$47.23List $56.65
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1114920 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0075
Cutting width0.0941
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3094
Insert styleNG
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
