Kennametal

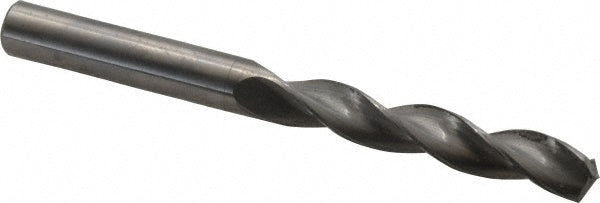

3/8" Solid Carbide Drill Bit, 130° point - Kennametal 1153180
MFR# 1153180
$309.46List $396.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes3
Description
The Kennametal 1153180 is a 3/8" Solid Carbide drill bit, 130° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0002 to +0.0008 in
Drill bit finish coatingBright
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Drill point length0.0940
Flute length2.3600
Flute typeSpiral
Material gradeK10
Maximum drilling depth1.9200
Number of flutes3
Overall length4.0600
Point typeStandard
Shank diameter in3/8
Shank length1.5900
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
