Kennametal

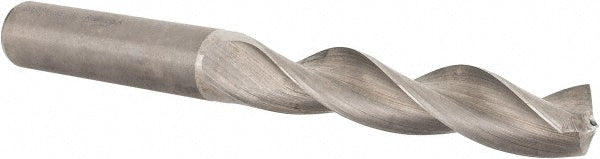

1/2" Solid Carbide Drill Bit, 130° point - Kennametal 1153188
MFR# 1153188
$397.99List $510.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes3
Description
The Kennametal 1153188 is a 1/2" Solid Carbide drill bit, 130° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0003 to +0.0010 in
Drill bit finish coatingBright
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Drill point length0.1250
Flute length2.7600
Flute typeSpiral
Material gradeK10
Maximum drilling depth2.1900
Number of flutes3
Overall length4.6500
Point typeStandard
Shank diameter0.5000
Shank length1.7900
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
