Kennametal

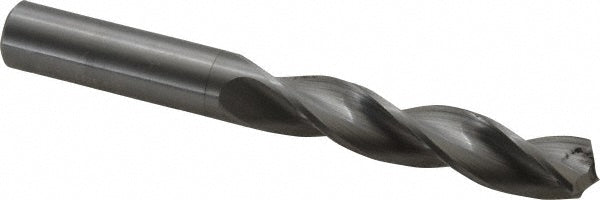

9/16" Solid Carbide Drill Bit, 130° point - Kennametal 1153189
MFR# 1153189
$488.28List $626.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes3
Description
The Kennametal 1153189 is a 9/16" Solid Carbide drill bit, 130° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0003 to +0.0010 in
Drill bit finish coatingBright
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in9/16
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Drill point length0.1410
Flute length2.9900
Flute typeSpiral
Material gradeK10
Maximum drilling depth2.3600
Number of flutes3
Overall length4.8800
Point typeStandard
Shank diameter in9/16
Shank length1.7900
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
