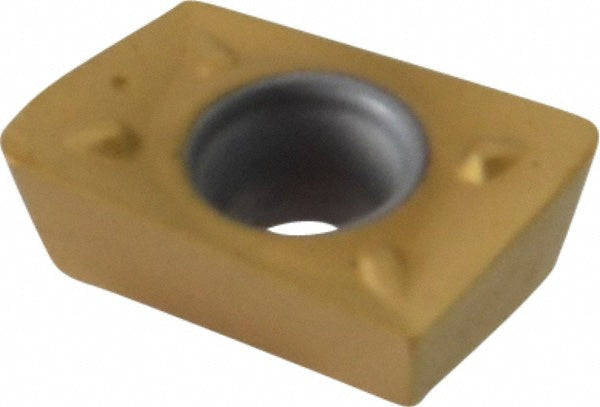

ADKT1035PDSRLC Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157452

Kennametal

ADKT1035PDSRLC Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157452

MFR# 1157452ISO/ANSI# ADKT1035PDSRLCCat# ADKT1035PDSRLCSeries ADKT

$34.89List $41.85 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC21/64
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 1157452 is a ADKT1035PDSRLC solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerLC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1142
Included angle degree85
Inscribed circle in21/64
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1622
Insert styleADKT
Iso codeADKT1035PDSRLC
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADKT1035PDSRLC
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle7
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2640
