Kennametal

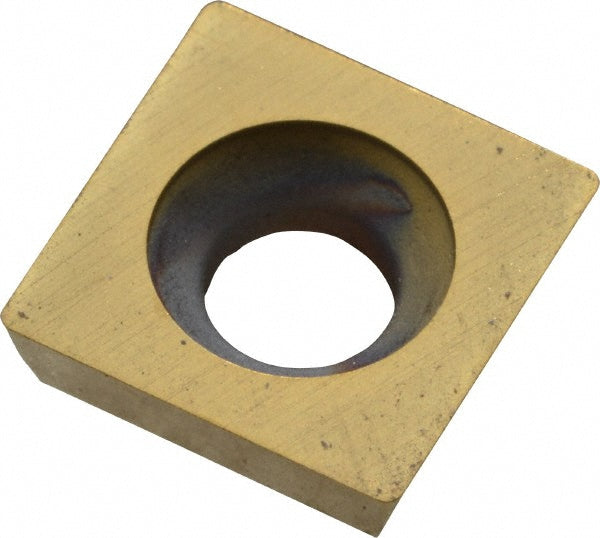

SDEB080204 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157496
MFR# 1157496ISO/ANSI# SDEB080204Cat# SDEB080204Series SDEB
$29.64List $36.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC21/64
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1157496 is a SDEB080204 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1402
Included angle degree90
Inscribed circle in21/64
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size2.
Insert size code2.61.51
Insert styleSDEB
Iso codeSDEB080204
Manufacturers catalog numberSDEB080204
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle15.00
Thickness in3/32
Thickness range0.0000 to 0.1000
