SPEB090308 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157499

Kennametal

SPEB090308 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157499

MFR# 1157499ISO/ANSI# SPEB090308Cat# SPEB090308Series SPEB

$37.46List $44.93 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

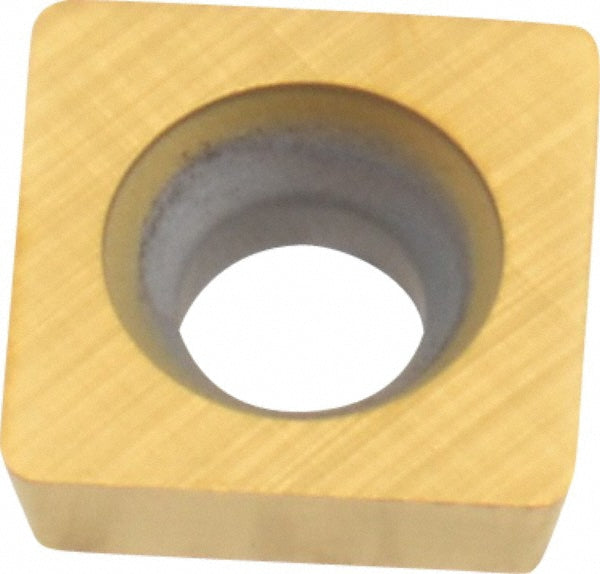

The Kennametal 1157499 is a SPEB090308 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1563
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size32
Insert size code322
Insert styleSPEB
Iso codeSPEB090308
Manufacturers catalog numberSPEB090308
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in1/8
Thickness range0.1250 to 0.1500
