Kennametal

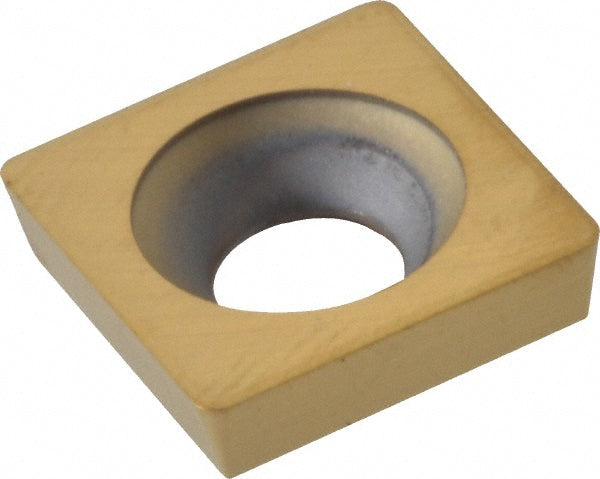

SPEB120308T Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157504
MFR# 1157504ISO/ANSI# SPEB120308TCat# SPEB120308TSeries SPEB
$44.82List $53.75
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC21/64
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1157504 is a SPEB120308T solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2071
Included angle degree90
Inscribed circle in21/64
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size42
Insert size code422
Insert styleSPEB
Iso codeSPEB120308T
Manufacturers catalog numberSPEB120308T
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in1/8
Thickness range0.1250 to 0.1500
