Kennametal

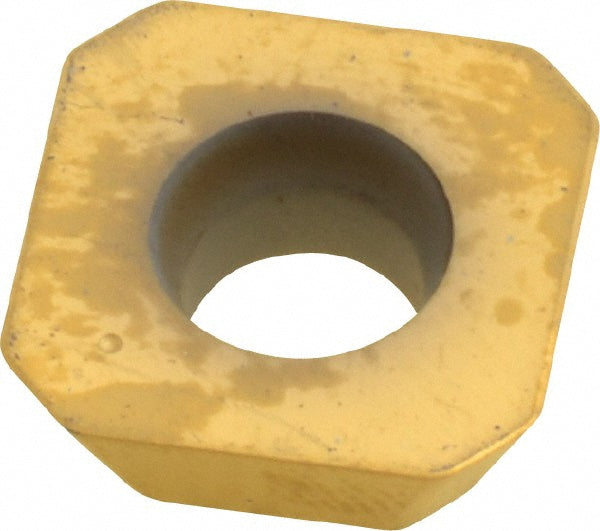

SEHW1204AFTN Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1157802
MFR# 1157802ISO/ANSI# SEHW1204AFTNCat# SEHW1204AFTNSeries SEHW
$42.25List $50.67
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1157802 is a SEHW1204AFTN solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSEHW43A6T
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting edge styleT-Land
Hole diameter0.2165
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHW
Iso codeSEHW1204AFTN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHW1204AFTN
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
