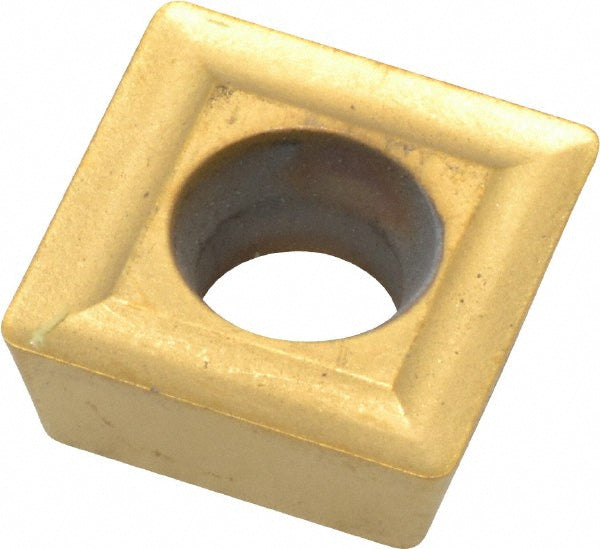

SPMT120408 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1157887
MFR# 1157887ISO/ANSI# SPMT120408Cat# SPMT120408Series SPMT
$38.80List $46.54
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1157887 is a SPMT120408 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSPMT432
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySD12
Cutting edge styleHoned
Hole diameter0.2165
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code432
Insert styleSPMT
Iso codeSPMT120408
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMT120408
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
