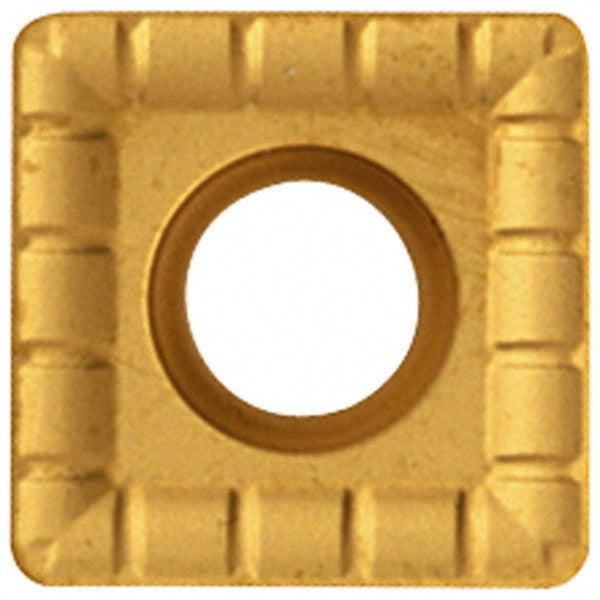

3/8" IC Carbide Insert, Grade KC720, TiN - Kennametal 1157976

Kennametal

3/8" IC Carbide Insert, Grade KC720, TiN - Kennametal 1157976

MFR# 1157976

$28.19List $34.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKC720
MaterialCarbide
CoatingTiN

Description

The Kennametal 1157976 is a carbide indexable insert, grade KC720, TiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ChipbreakerT
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1380
Included angle degree90
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert size code09T308
Insert styleSPGT
Manufacturers catalog number1157976
Manufacturer gradeKC720
Material gradeC1; C5
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11
Thickness in5/32
Width0.375
