Kennametal

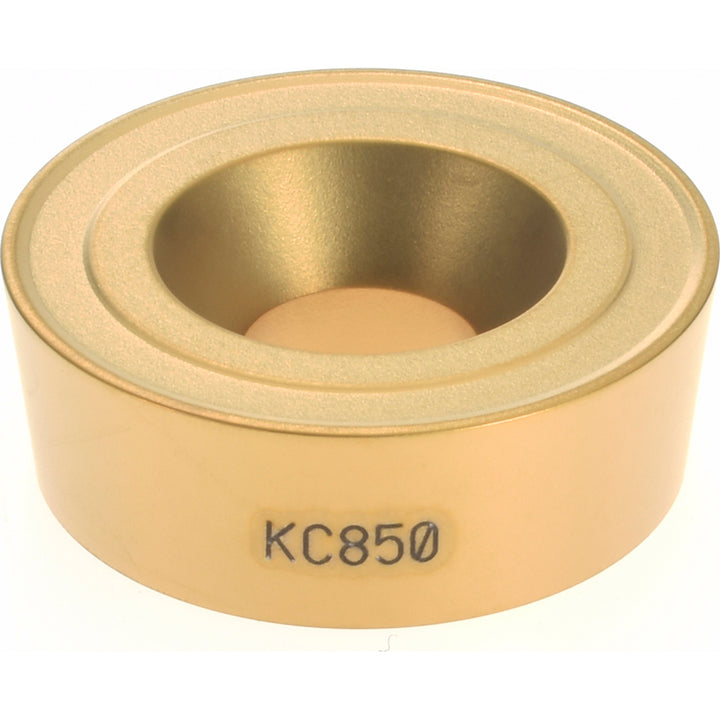

R - Round 3/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1158478
MFR# 1158478ISO/ANSI# RCMH190600Series Screw-On
$66.38List $79.62
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeR - Round
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1158478 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeRCMH64
Ansi size code64
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in3/8
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2520
Included angle360
Industry standard numberRCMH64K
Inscribed circle in3/4
Insert handNeutral
Insert holding methodScrew
Insert length in3/4
Insert materialCarbide
Insert shapeR - Round
Insert size code64
Insert styleRCMH
Insert thickness in1/4
Iso insert codeRCMH190600
Iso size code190600
Length range0.7000 - 10.0000
Manufacturers catalog number1158478
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
