Kennametal

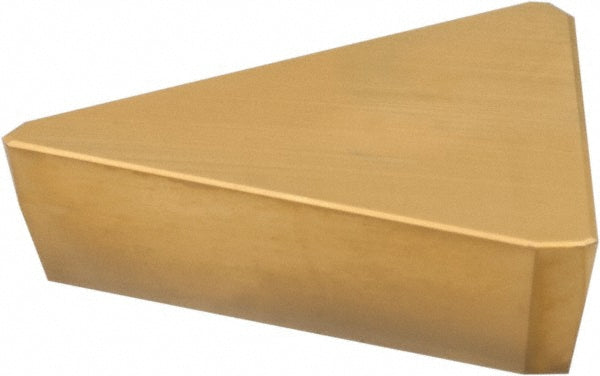

TPKN2204PDTR Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1159581
MFR# 1159581ISO/ANSI# TPKN2204PDTRCat# TPKN2204PDTRSeries TPKN
$55.73List $66.84
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1159581 is a TPKN2204PDTR solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Included angle degree60
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size43
Insert size code43
Insert styleTPKN
Iso codeTPKN2204PDTR
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberTPKN2204PDTR
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in3/16
Thickness range0.1850 to 0.2000
