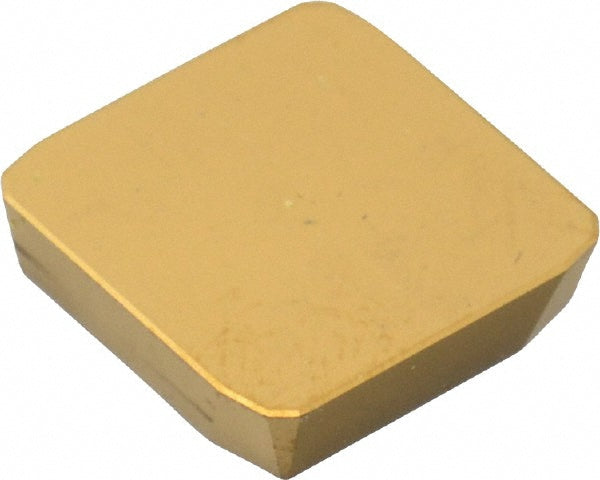

SPKN1203EDTR Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1159582

Kennametal

SPKN1203EDTR Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1159582

MFR# 1159582ISO/ANSI# SPKN1203EDTRCat# SPKN1203EDTRSeries SPKN

$46.55List $55.84 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 1159582 is a SPKN1203EDTR solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Coating finishTiN
Coating processPVD
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size42
Insert size code42
Insert styleSPKN
Iso codeSPKN1203EDTR
Manufacturers catalog numberSPKN1203EDTR
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in1/8
Thickness range0.1250 to 0.1500
