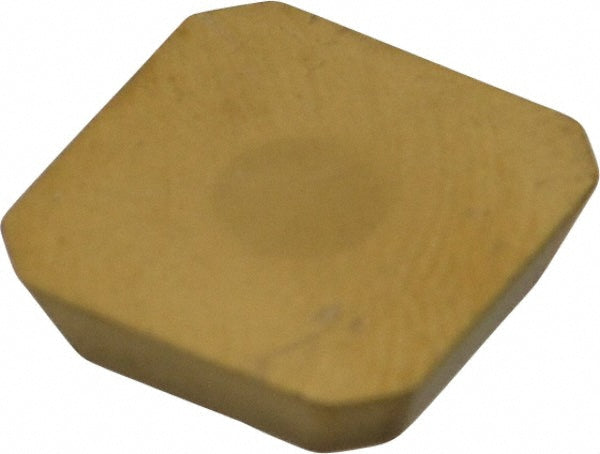

SEKN1203AFENLN Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1159583

Kennametal

SEKN1203AFENLN Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1159583

MFR# 1159583ISO/ANSI# SEKN1203AFENLNCat# SEKN1203AFENLNSeries SEKN

$38.34List $45.99 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 1159583 is a SEKN1203AFENLN solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerLN
Coating finishTiN
Coating processPVD
Corner radius0.0394
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size42
Insert size code42
Insert styleSEKN
Iso codeSEKN1203AFENLN
Manufacturers catalog numberSEKN1203AFENLN
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle0
Relief angle20.00
Thickness in1/8
Thickness range0.1250 to 0.1500
