Kennametal

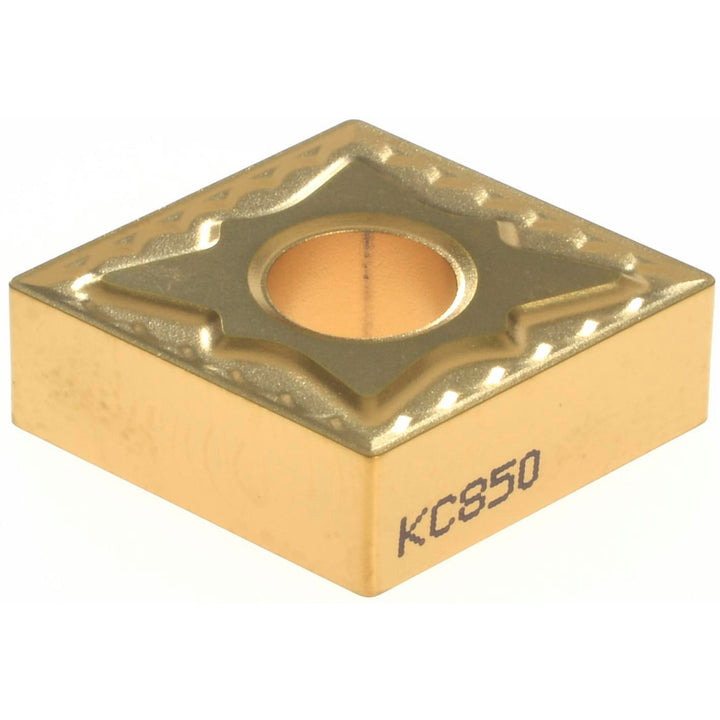

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160175
MFR# 1160175ISO/ANSI# CNMG120404Series KENLOC
$25.38List $30.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160175 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerMG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle80
Industry standard numberCNMG431MG
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number1160175
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
