Kennametal

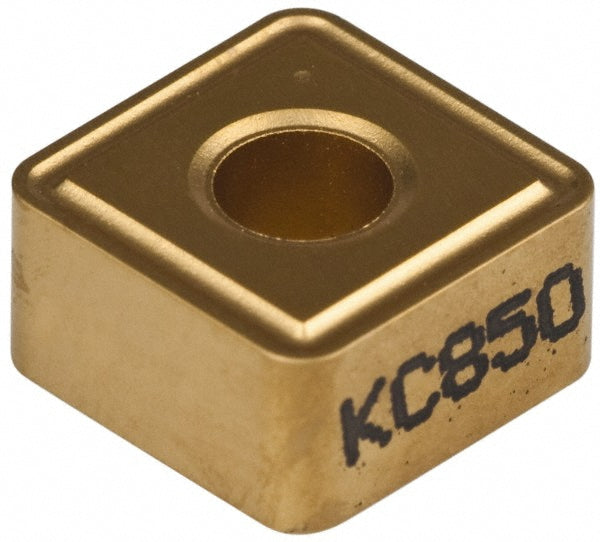

SNMG333 Carbide Insert, Grade KC850, TiC - Kennametal 1160249
MFR# 1160249ISO/ANSI# SNMG090412Series KENLOC
$20.83List $25.42
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160249 is a SNMG333 carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeSNMG333
Ansi size code333
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1500
Included angle90
Industry standard numberSNMG333
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code333
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG333
Iso insert codeSNMG090412
Iso size code090412
Length range0.3000 - 0.4000
Manufacturers catalog number1160249
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
