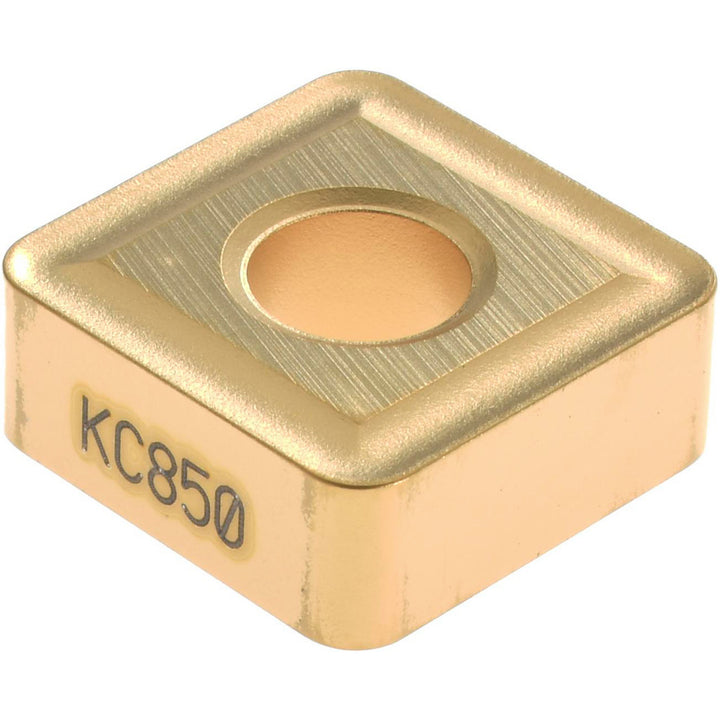

SNMG434 Carbide Insert, Grade KC850, TiC - Kennametal 1160256

Kennametal

SNMG434 Carbide Insert, Grade KC850, TiC - Kennametal 1160256

MFR# 1160256ISO/ANSI# SNMG120416Series KENLOC

$23.52List $28.71 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1160256 is a SNMG434 carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeSNMG434
Ansi size code434
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle90
Industry standard numberSNMG434
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code434
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG434
Iso insert codeSNMG120416
Iso size code120416
Length range0.5000 - 0.6000
Manufacturers catalog number1160256
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
