Kennametal

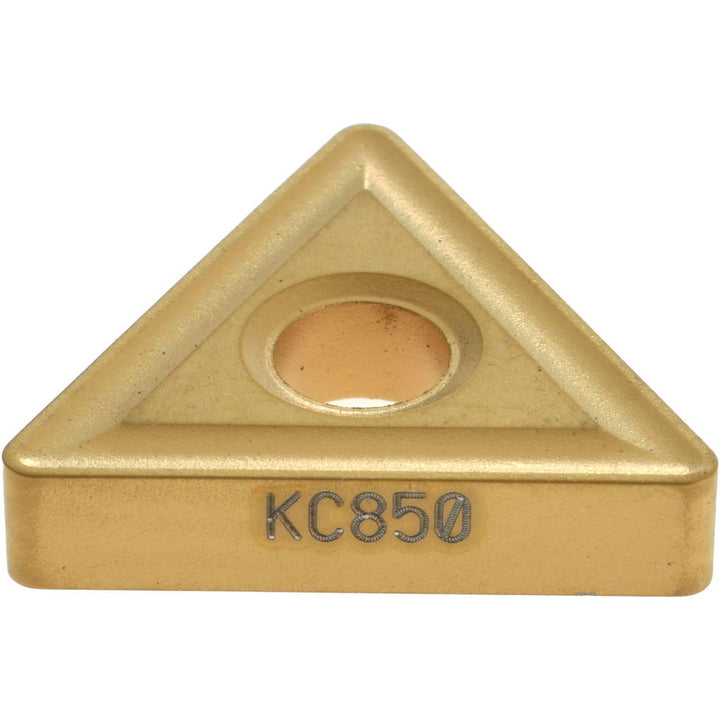

T - Triangle 3/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160293
MFR# 1160293ISO/ANSI# TNMG160308Series KENLOC
$20.26List $24.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160293 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeTNMG322
Ansi size code322
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1500
Included angle60
Industry standard numberTNMG322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Iso insert codeTNMG160308
Iso size code160308
Length range0.6000 - 0.6500
Manufacturers catalog number1160293
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
