Kennametal

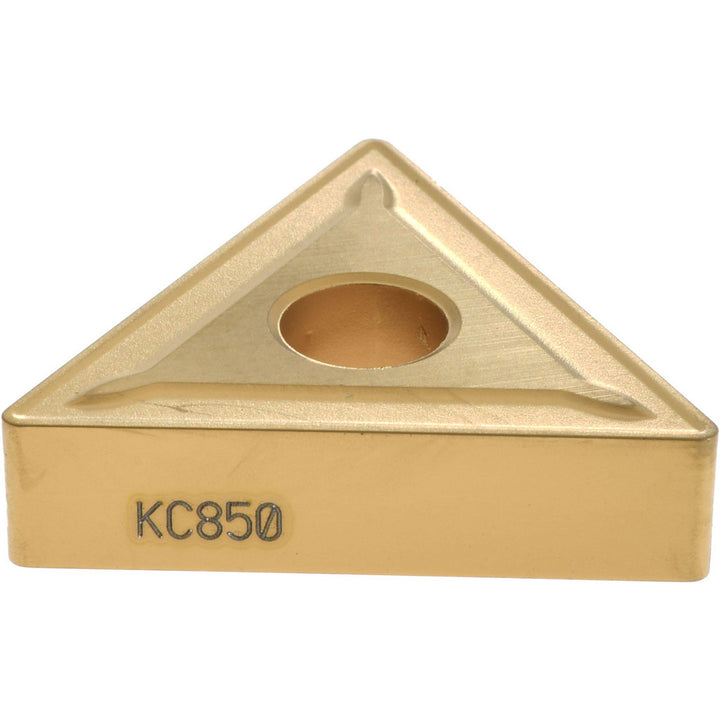

T - Triangle 5/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160316
MFR# 1160316ISO/ANSI# TNMG270608Series KENLOC
$57.97List $69.53
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160316 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeTNMG542
Ansi size code542
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2500
Included angle60
Industry standard numberTNMG542
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0820
Insert materialCarbide
Insert shapeT - Triangle
Insert size code542
Insert styleTNMG
Insert thickness in1/4
Iso insert codeTNMG270608
Iso size code270608
Length range0.7000 - 10.0000
Manufacturers catalog number1160316
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.0820
Wiper edgeNo
