Kennametal

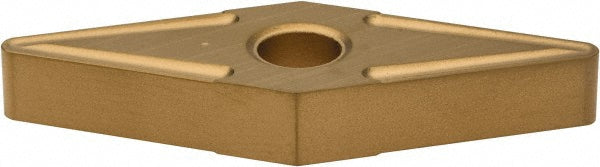

V - Diamond (Rhombic) 35-Deg 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160344
MFR# 1160344ISO/ANSI# VNMG220412Series KENLOC
$47.89List $57.44
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160344 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeVNMG433
Ansi size code433
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle35
Industry standard numberVNMG433
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.7434
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code433
Insert styleVNMG
Insert thickness in3/16
Iso insert codeVNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number1160344
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
