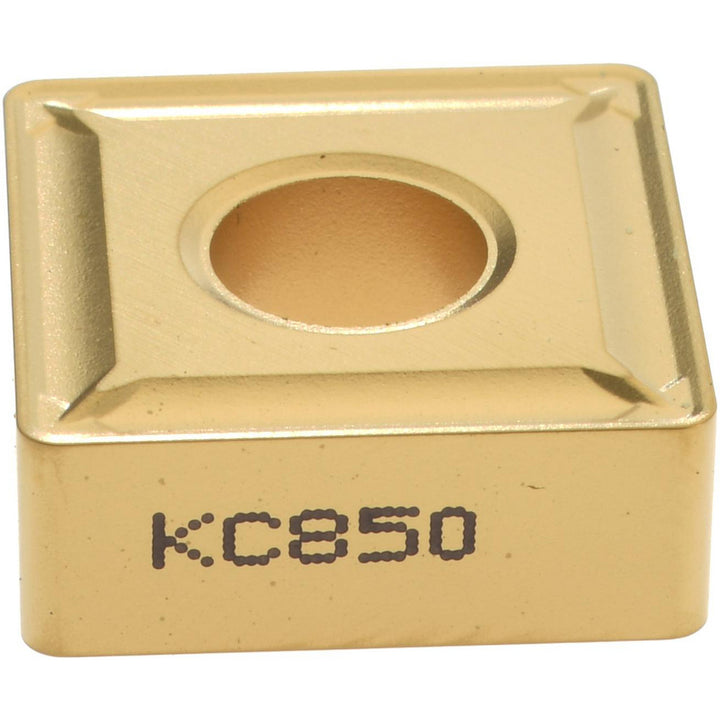

SNMG432 Carbide Insert, Grade KC850, TiC - Kennametal 1160356
MFR# 1160356ISO/ANSI# SNMG120408Series KENLOC
$27.76List $33.30
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160356 is a SNMG432 carbide indexable insert, grade KC850, TiC coated.
Specifications
Ansi insert codeSNMG432
Ansi size code432
Chip breakerK
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle90
Industry standard numberVBMT33211
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Iso insert codeSNMG120408
Iso size code120408
Manufacturers catalog number1160356
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
