Kennametal

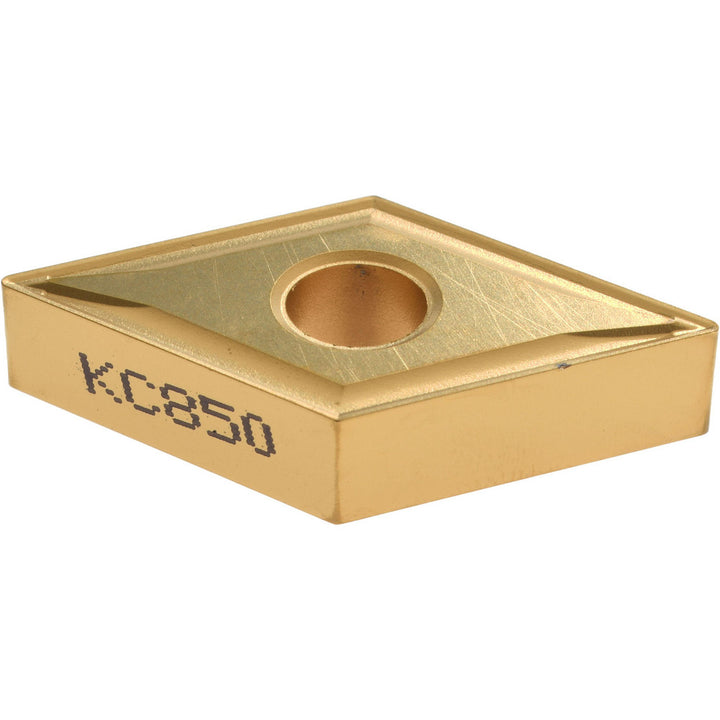

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160363
MFR# 1160363ISO/ANSI# DNMG150404Series KENLOC
$39.07List $46.85
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160363 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Ansi insert codeDNMG431
Ansi size code431
Chip breakerK
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle55
Industry standard numberTCMT215111
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG150404
Iso size code150404
Length range0.6000 - 0.6500
Manufacturers catalog number1160363
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
