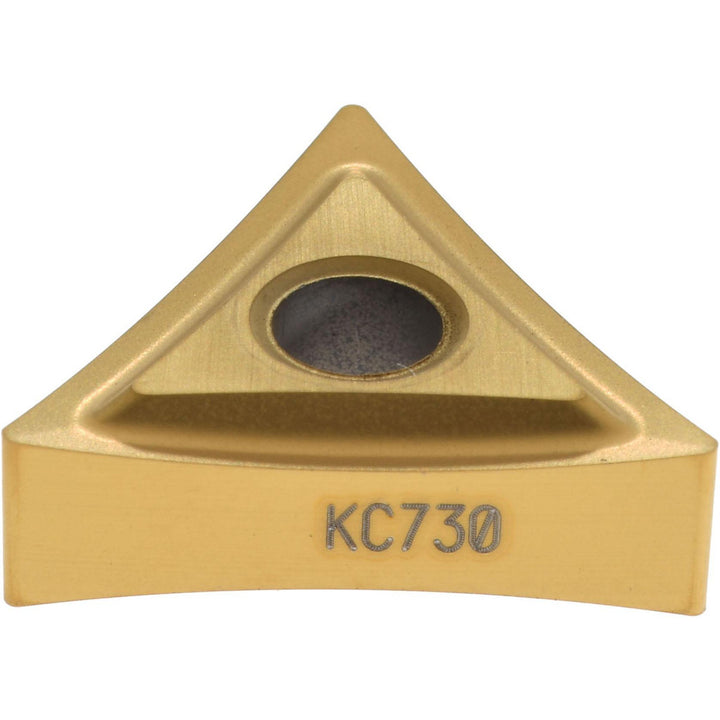

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160932

Kennametal

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160932

MFR# 1160932ISO/ANSI# TNGP160404Series KENLOC

$25.11List $30.65 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1160932 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTNGP331
Ansi size code331
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Industry standard numberTNGP331
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code331
Insert styleTNGP
Insert thickness in3/16
Iso insert codeTNGP160404
Iso size code160404
Length range0.6000 - 0.6500
Manufacturers catalog number1160932
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
