Kennametal

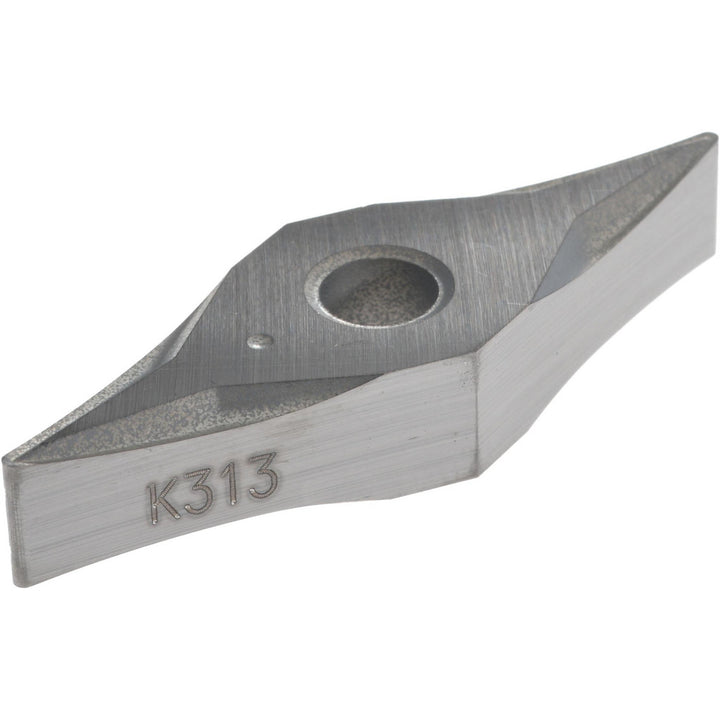

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade K313 - Kennametal 1161105
MFR# 1161105ISO/ANSI# VNGP160404Series KENLOC
$33.06List $39.65
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeK313
MaterialCarbide
Description
The Kennametal 1161105 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeVNGP331
Ansi size code331
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1500
Included angle35
Industry standard numberVNGP331K
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGP
Insert thickness in3/16
Iso insert codeVNGP160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number1161105
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
