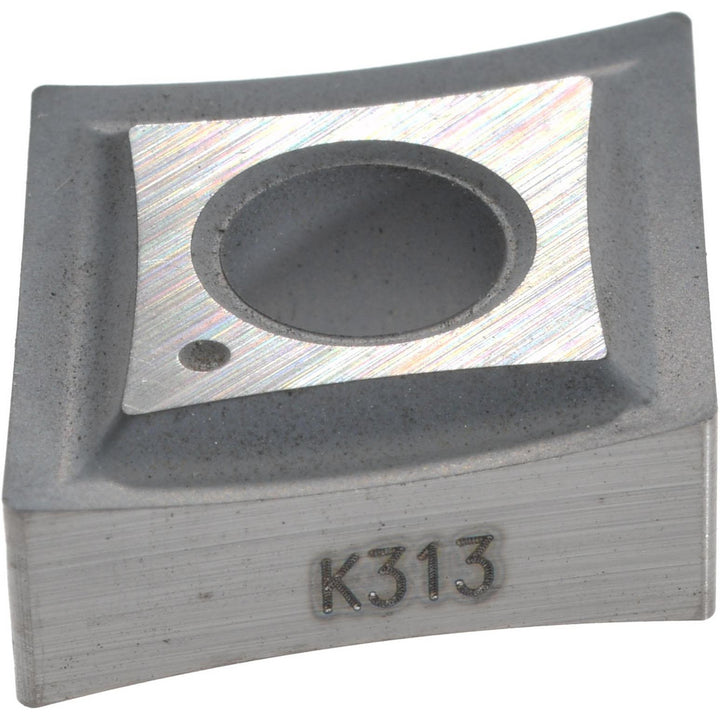

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade K313 - Kennametal 1161112

Kennametal

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade K313 - Kennametal 1161112

MFR# 1161112ISO/ANSI# CNGP120404Series KENLOC

$27.65List $33.75 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeK313
MaterialCarbide

Description

The Kennametal 1161112 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeCNGP431
Ansi size code431
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.2031
Included angle80
Industry standard numberCNGP431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNGP
Insert thickness in3/16
Iso insert codeCNGP120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number1161112
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
