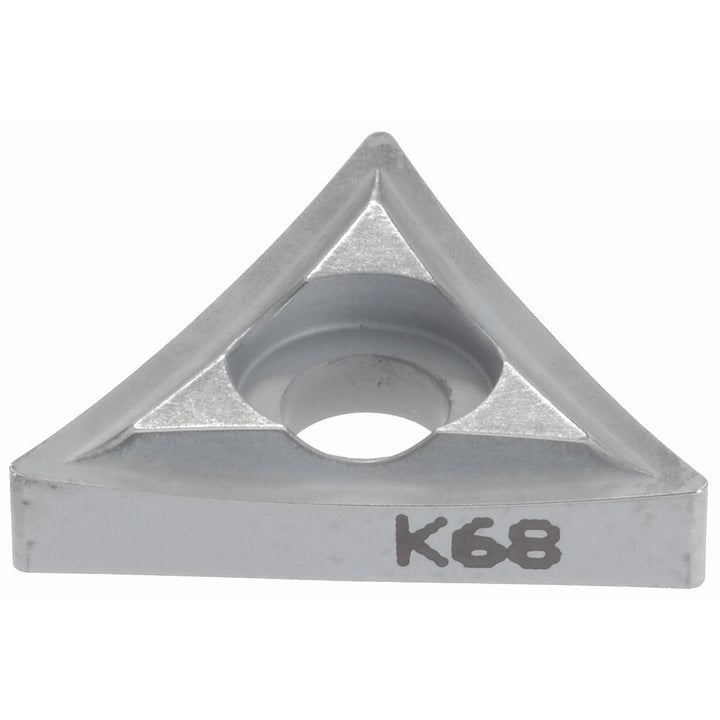

T - Triangle 3/8" IC Carbide Insert, Grade K68 - Kennametal 1161208

Kennametal

T - Triangle 3/8" IC Carbide Insert, Grade K68 - Kennametal 1161208

MFR# 1161208ISO/ANSI# T160304Series Screw-On

$20.22List $24.67 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeK68
MaterialCarbide

Description

The Kennametal 1161208 is a carbide indexable insert, grade K68.

Specifications

Ansi insert codeT321
Ansi size code321
Chip breakerP
Chip breaker operationRoughing; Medium Machining
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1516
Included angle60
Industry standard numberDPGT32502LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code321
Insert styleT
Insert thickness in1/8
Iso insert codeT160304
Iso size code160304
Length range0.6000 - 0.6500
Manufacturers catalog number1161208
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
RakePositive
Side clearanceNegative
