Kennametal

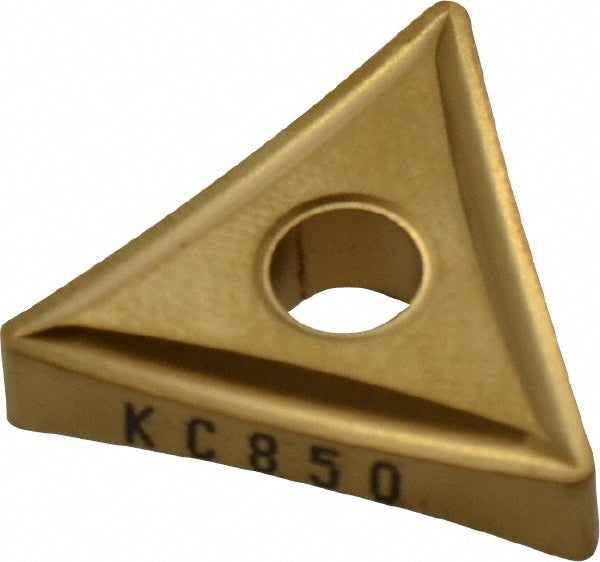

T - Triangle 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1161344
MFR# 1161344ISO/ANSI# TNMP220408Series KENLOC
$28.77List $35.12
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1161344 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeTNMP432
Ansi size code432
Chip breakerK
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle60
Industry standard numberTNMP432K
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMP
Insert thickness in3/16
Iso insert codeTNMP220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number1161344
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
