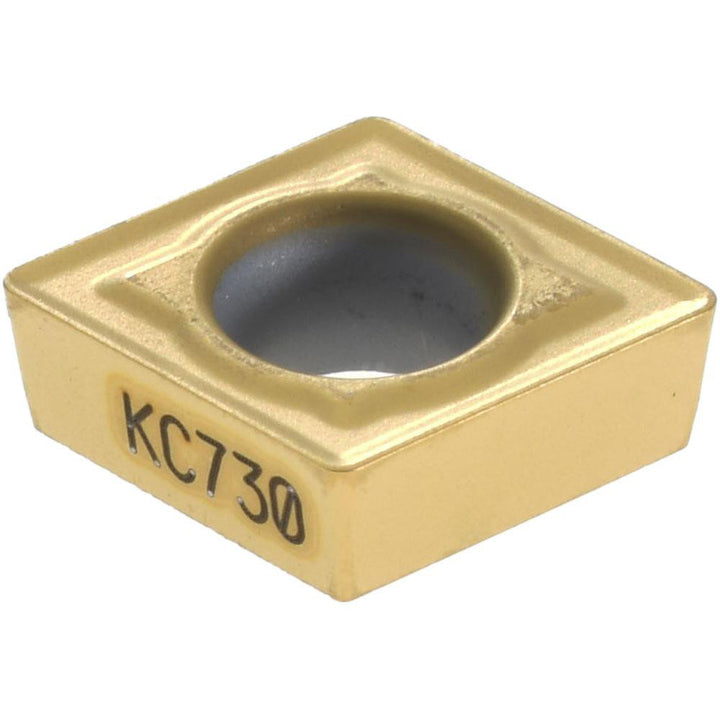

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161841

Kennametal

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161841

MFR# 1161841ISO/ANSI# CCMT060204Series Screw-On

$25.46List $31.07 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1161841 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCCMT2151
Ansi size code2151
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCCMT2151MF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number1161841
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
