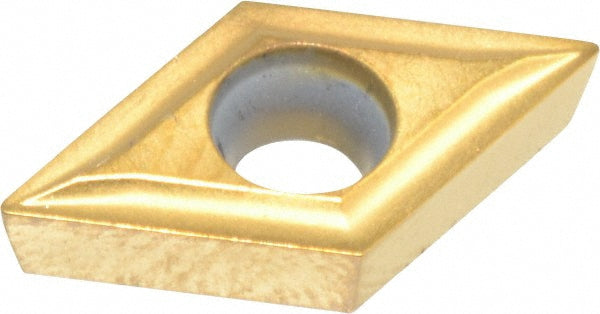

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161925

Kennametal

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161925

MFR# 1161925ISO/ANSI# DCMT070202Series Screw-On

$25.80List $31.49 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1161925 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCMT21505
Ansi size code21505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle55
Industry standard numberDCMT21505LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21505
Insert styleDCMT
Insert thickness in3/32
Iso insert codeDCMT070202
Iso size code070202
Length range0.6000 - 0.6500
Manufacturers catalog number1161925
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
