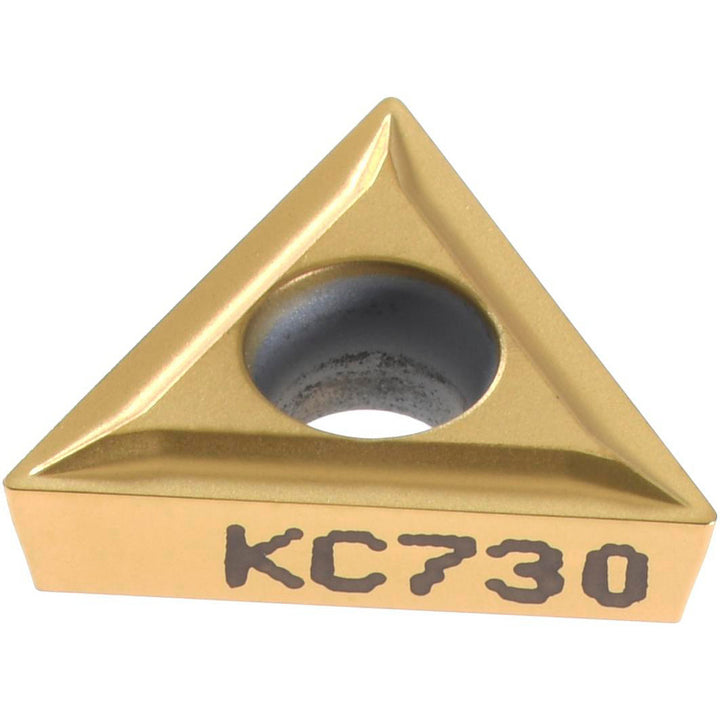

T - Triangle 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1162007

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1162007

MFR# 1162007ISO/ANSI# TCMT110202Series Screw-On

$28.89List $35.27 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1162007 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTCMT21505
Ansi size code21505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle60
Industry standard numberTCMT21505LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21505
Insert styleTCMT
Insert thickness in3/32
Iso insert codeTCMT110202
Iso size code110202
Length range0.4000 - 0.5000
Manufacturers catalog number1162007
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
