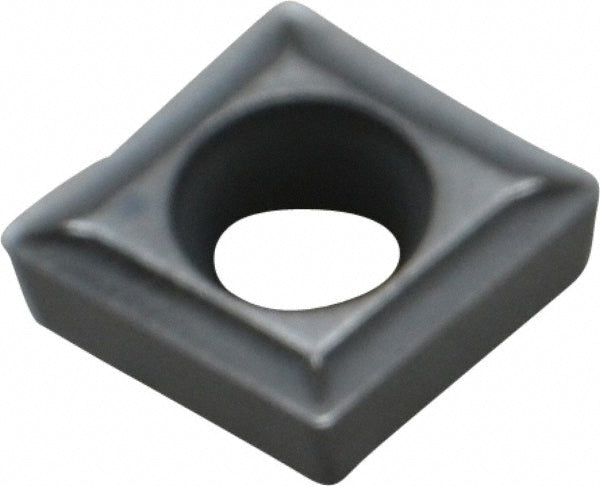

Diamond 80 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162190

Kennametal

Diamond 80 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162190

MFR# 1162190ISO/ANSI# CCMT3251LFSeries Screw-On

$22.25List $27.16 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeK313
MaterialCarbide

Description

The Kennametal 1162190 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Length range0.3000 - 0.4000
Manufacturers catalog number1162190
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
