Kennametal

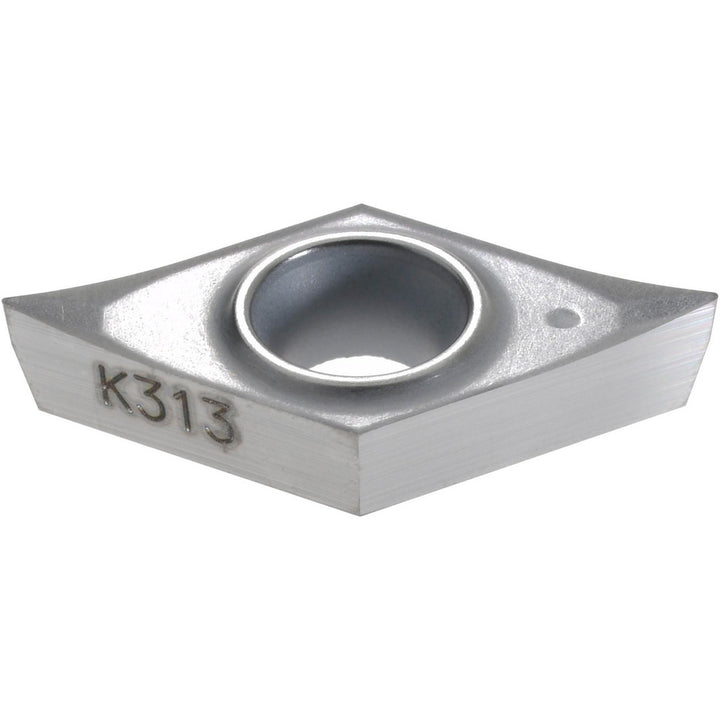

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162206
MFR# 1162206ISO/ANSI# DCGT11T302Series Screw-On
$29.63List $36.17
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeK313
MaterialCarbide
Description
The Kennametal 1162206 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeDCGT32505
Ansi size code32505
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1732
Included angle55
Industry standard numberDCGT32505HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32505
Insert styleDCGT
Insert thickness in5/32
Iso insert codeDCGT11T302
Iso size code11T302
Length range0.7000 - 10.0000
Manufacturers catalog number1162206
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
