Kennametal

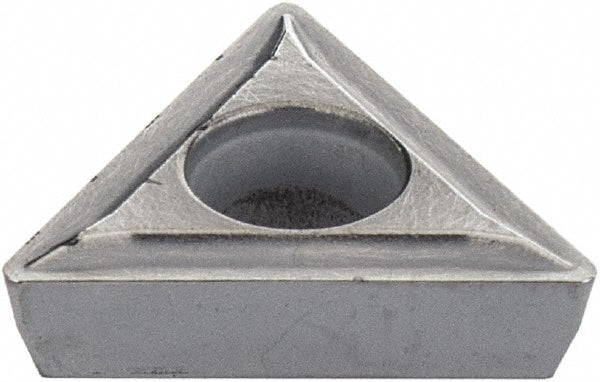

T - Triangle 1/4" IC Carbide Insert, Grade K313 - Kennametal 1162223
MFR# 1162223ISO/ANSI# TPMT110204Series Screw-On
$26.69List $32.02
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK313
MaterialCarbide
Description
The Kennametal 1162223 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeTPMT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1142
Included angle60
Industry standard numberTPMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2151
Insert styleTPMT
Insert thickness in3/32
Iso insert codeTPMT110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number1162223
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
