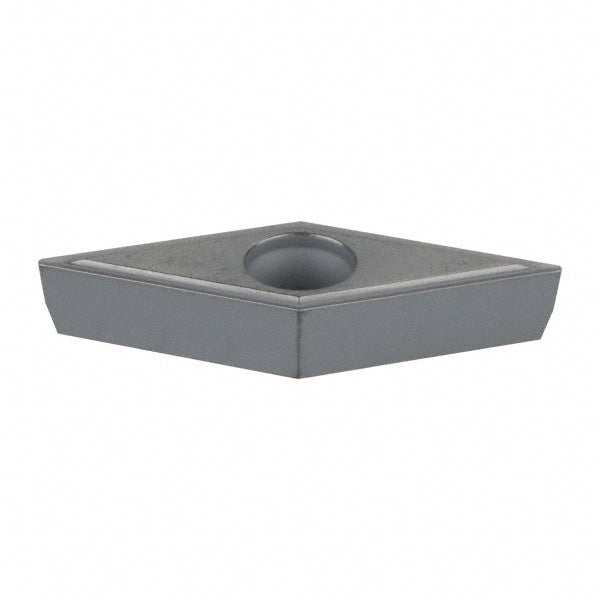

Diamond 35 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162234

Kennametal

Diamond 35 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162234

MFR# 1162234ISO/ANSI# VBMT331LFSeries Screw-On

$29.74List $36.30 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeK313
MaterialCarbide

Description

The Kennametal 1162234 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeB
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVBMT331LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number1162234
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
