Kennametal

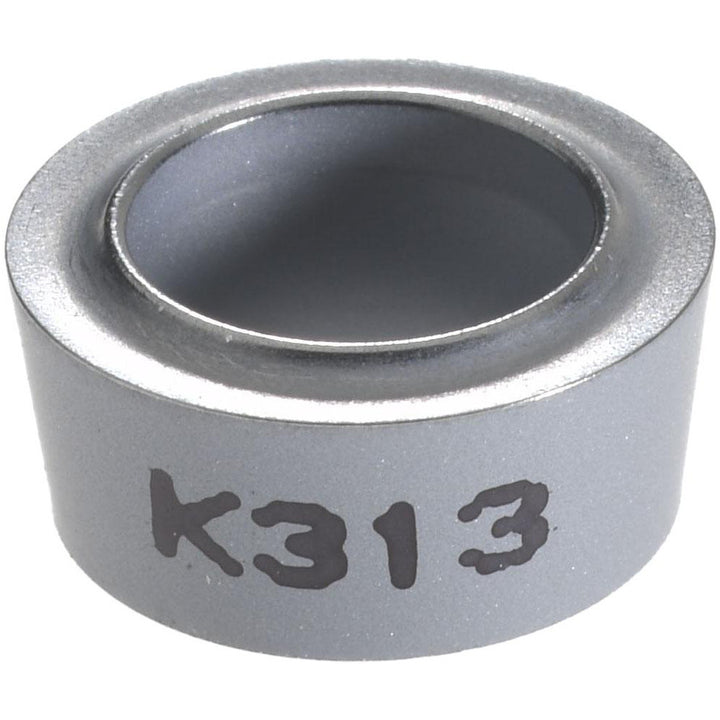

R - Round 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162245
MFR# 1162245ISO/ANSI# RCMT097300Series Screw-On
$22.11List $26.53
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeK313
MaterialCarbide
Description
The Kennametal 1162245 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeRCMT32.5
Ansi size code32.5
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating processUncoated
Corner radius in3/16
Cutting edge styleHoned
Full radiusYes
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1732
Included angle360
Industry standard numberRCMT325
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeR - Round
Insert size code32
Insert styleRCMT
Insert thickness in5/32
Iso insert codeRCMT097300
Iso size code097300
Length range0.3000 - 0.4000
Manufacturers catalog number1162245
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
