Kennametal

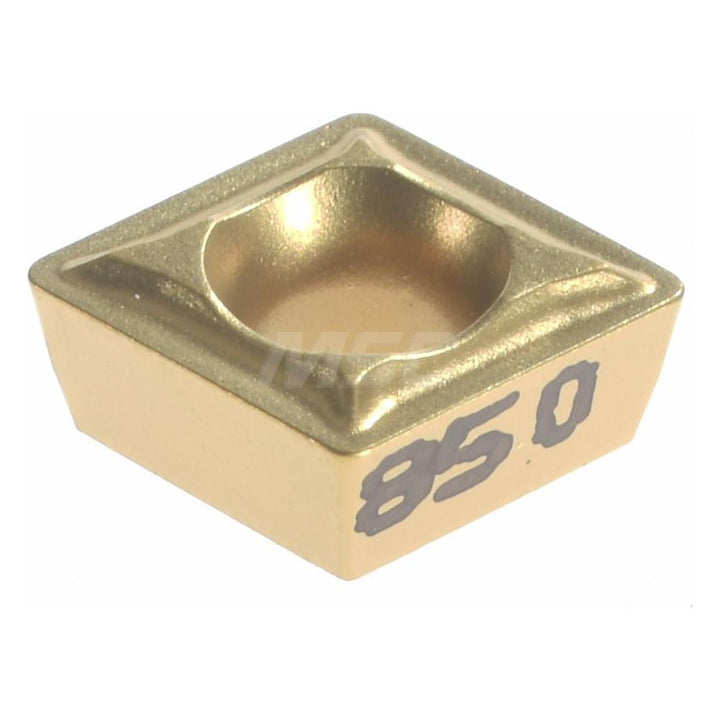

Diamond 7/32" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162366
MFR# 1162366Series Screw-On
$29.58List $35.47
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeDiamond
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1162366 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
ChipbreakerLF
Coating finishTiC
Coating processCVD
Corner radius in1/64
Hole diameter0.1043
Included angle80
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code18151
Insert styleCPMT
Length0.2224
Manufacturers catalog number1162366
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Width0.2188
