Kennametal

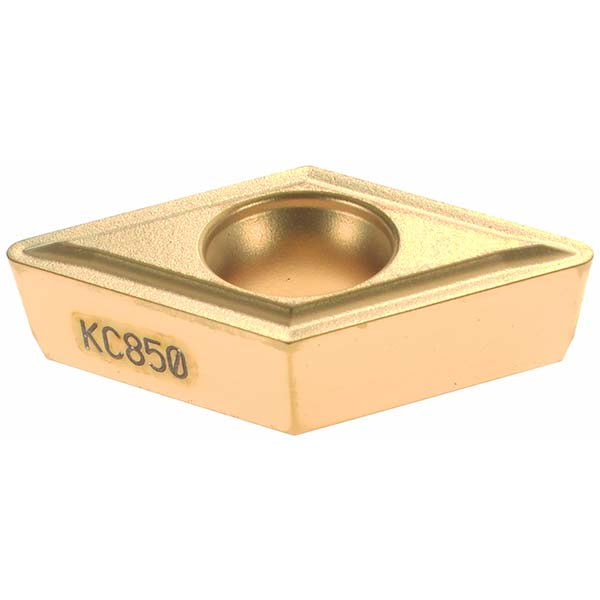

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162385
MFR# 1162385ISO/ANSI# DPMT11T308Series Screw-On
$31.45List $38.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1162385 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeDPMT3252
Ansi size code3252
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1732
Included angle55
Industry standard numberDPMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3252
Insert styleDPMT
Insert thickness in5/32
Iso insert codeDPMT11T308
Iso size code11T308
Length range0.7000 - 10.0000
Manufacturers catalog number1162385
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
