Kennametal

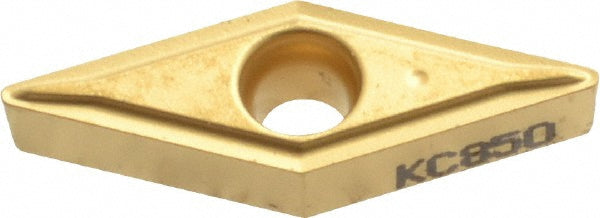

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162399
MFR# 1162399ISO/ANSI# VBMT110304Series Screw-On
$41.27List $49.51
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1162399 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeVBMT221
Ansi size code221
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1102
Included angle35
Industry standard numberVBMT221LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110304
Iso size code110304
Length range0.7000 - 10.0000
Manufacturers catalog number1162399
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
